Your Professional Globe Valve Supplier
Jiangsu Tisco Equipment Co., Ltd. is a comprehensive valve company integrating manufacturing and trading. We specialize in the production of valves and the processing of stainless steel products, including ball valves, gate valves, butterfly valves, globe valves, as well as pipes, plates, profiles, and stems. In addition, copper, aluminum, titanium, and other alloy steels such as Inconel are also within our product range.
-
![Cryogenic Globe Valve]()

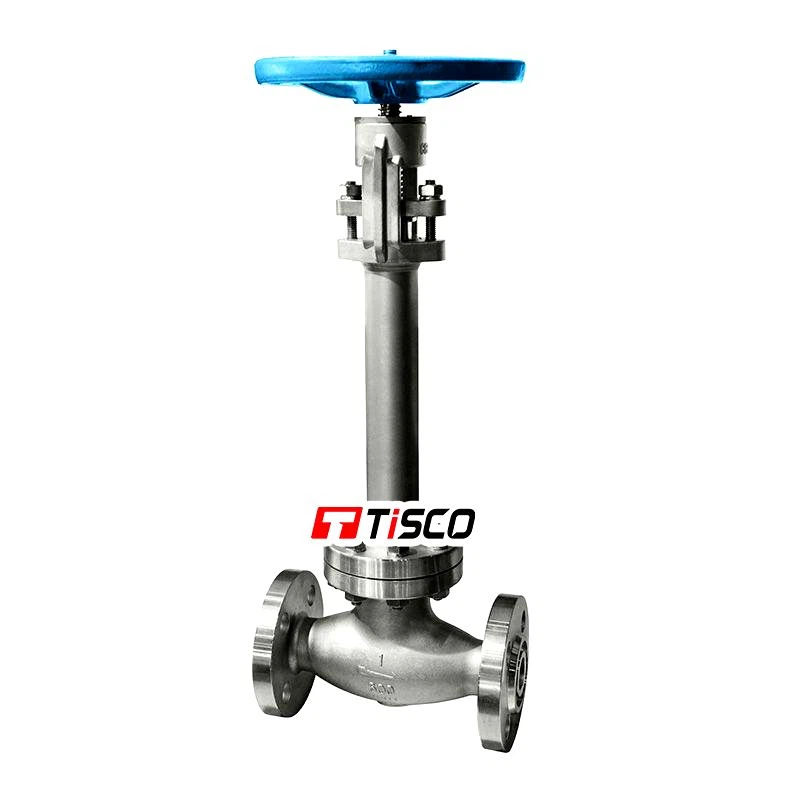

Cryogenic Globe ValveProduct Name: Cryogenic Globe Valve. DN(NPS): DN15 ~ DN1200 (1/2″ ~ 48″). Pressure: PN10 ~ PN420 (150 ~ 2500). Material: CF8, CF8M, CF3, CF3M, F304, F316, F321, S31803, S32750, 310 or as per your -
![PTFE Lined Globe Valve]()
PTFE Lined Globe ValveProduction Name: PTFE Lined Globe Valve . Material: Stainless Steel alloy steel carbon steel or as your required. specification: DN15～DN200. Pressure Class: PN6 ~ PN16（Atmospheric pressure）. End -
![JIS Globe Valve]()
JIS Globe ValveProduction Name: JIS Globe Valve . Material: Stainless Steel alloy steel carbon steel or as your required. Specification: DN15～DN200. Pressure class: 5K, 10K, 16K, 20K. End Connections: FF, RF, RTJ. -
![ANSI Globe Valve]()
ANSI Globe ValveProduct Name: ANSI Globe Valve. DN(NPS): NPS1/2~NPS24. Pressure: Class150 ~ Class2500). Material: CF8, CF8M, CF3, CF3M, F304, F316, F321, S31803, S32750, 310 or as per your requirements. Standard: -
![Bellows-sealed Globe Valve]()
Bellows-sealed Globe ValveProduct Name: Bellows-sealed Globe Valve. DN(NPS): DN15 ~ DN200. Pressure: PN16~PN100. Material: CF8, CF8M, CF3, CF3M, F304, F316, F321, S31803, S32750, 310 or as per your requirements. Standard: API -
![GB Globe Valve]()
GB Globe ValveProduct Name: GB Globe Valve. DN(NPS): DN15 ~ DN1200 (1/2″ ~ 48″). Pressure: PN10 ~ PN420 (150 ~ 2500). Material: CF8, CF8M, CF3, CF3M, F304, F316, F321, S31803, S32750, 310 or as per your
A GB globe valve is a type of valve used for regulating flow in a pipeline. It consists of a movable disk-type element and a stationary ring seat in a generally spherical body. The valve is named for its globe-like shape and works by moving the disk (or plug) perpendicular to the flow of the fluid, allowing for precise control.
Product Parameter (Specification)
We offer a full range of stainless steel, duplex, and alloy steel cross fittings in various sizes to meet different piping requirements.
|
Product Name |
GB Globe Valve |
|
DN(NPS) |
DN15 ~ DN1200 (1/2″ ~ 48″) |
|
Pressure |
PN10 ~ PN420 (150 ~ 2500) |
|
Material |
CF8, CF8M, CF3, CF3M, F304, F316, F321, S31803, S32750, 310 or as per your requirements |
|
Standard |
API 600, API 603, ASME B16.34, GOST, EN, DIN, JIS |
|
End connection |
RF, RTJ, FM, BW, SW |
|
Actuator |
Manual, pneumatic, electric, hydraulic, bevel gear |
|
Package |
Cardboard boxes, wooden crates, pallets, or as per your requirements. |
Precise Flow Control: The linear motion of the disk allows for accurate regulation of flow.
Leak-Tight Sealing: Ensures minimal leakage, enhancing efficiency.
Durable Construction: Made from high-quality materials to withstand various operating conditions.
Easy Maintenance: Simple design allows for easy disassembly and maintenance.
GB type globe valves are available in various materials
Carbon Steel
Suitable for general applications with moderate temperatures.
Stainless Steel
Ideal for corrosive environments and higher temperature applications.
Alloy Steel
Used for high-pressure and high-temperature conditions.
Cast Iron
Cost-effective option for low-pressure applications.
Standards and Compliance
Design Specifications: GB/T 12235
1
>>
Structure Length: GB/T 12221
2
>>
Flange Connection: JB/T 79
3
>>
Test and Inspection: JB/T 9002
4
>>
Product Identification: GB/T 12220
5
>>
Delivery Specifications: JB/T 7928
6
》The globe valve should be checked for leakage before opening to determine whether the valve has no leakage defects and whether the stuffing box has no leakage defects.
》If the valve stem operation of the globe valve cannot be completed by hand, do not use an extension wrench to force the opening and closing to avoid damage to the valve or even a safety accident.
》When the globe valve is applied to the medium-pressure steam pipeline, the condensed water needs to be
removed before opening, and then the steam preheats the pipeline, and the preheating pressure is kept
between 0.2 and 0.3 MPA. The purpose of this is to avoid damage to the seals caused by sudden changes in temperature and pressure, and the pressure can be adjusted to the required level after confirming that the state is stable.
》The installation of the globe valve should refer to the direction of the fluid, and pay attention to keep the pipeline fluid consistent with the valve marking arrow.
FAQ
As one of the leading globe valve manufacturers and suppliers in China, our products have good reputation in the market. We warmly welcome you to buy high quality globe valve made in China here from our factory. We also accept customized orders.
